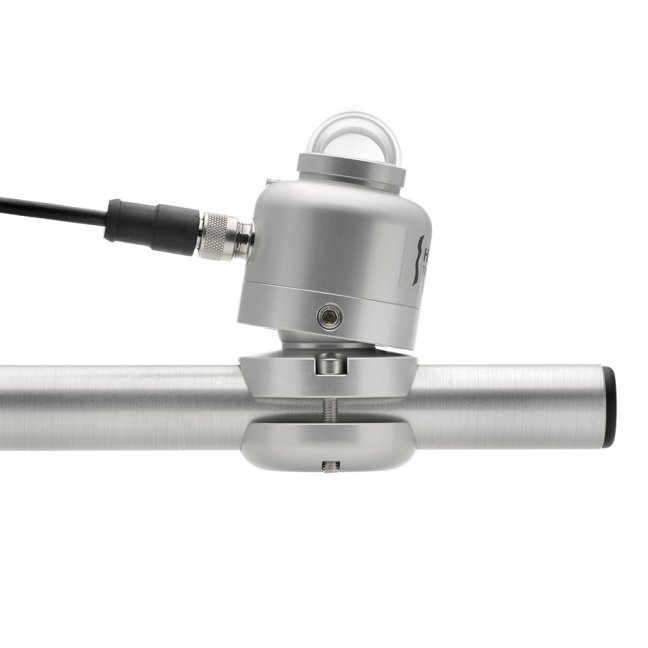

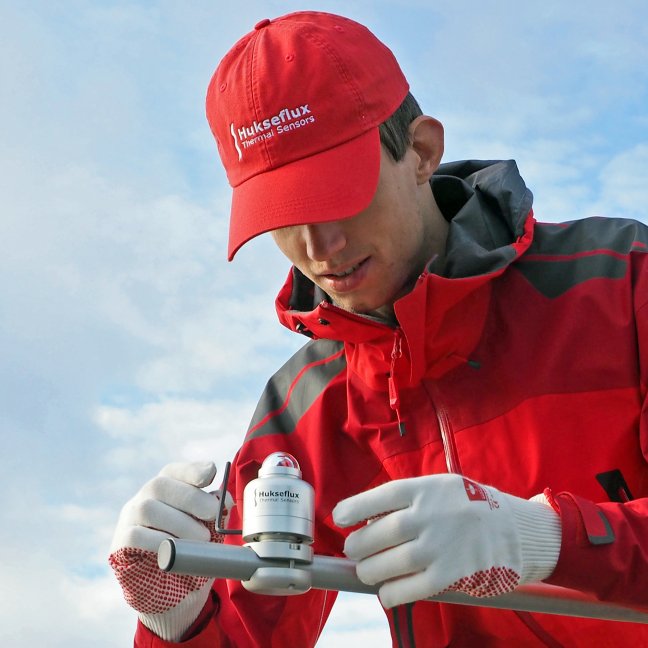

SR05 pyranometer mounting and levellingOptionally SR05 has a unique ball levelling mechanism and tube mount for easy mounting and levelling on a (non-)horizontal surface or tube. |
 |

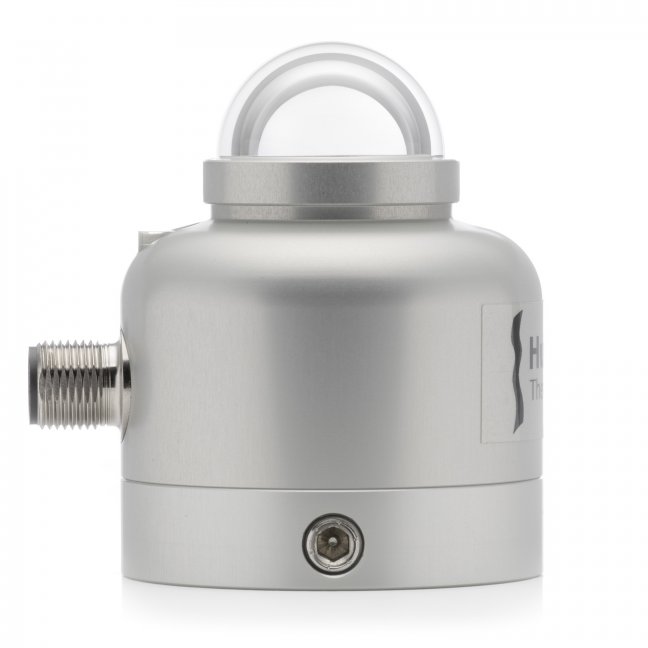

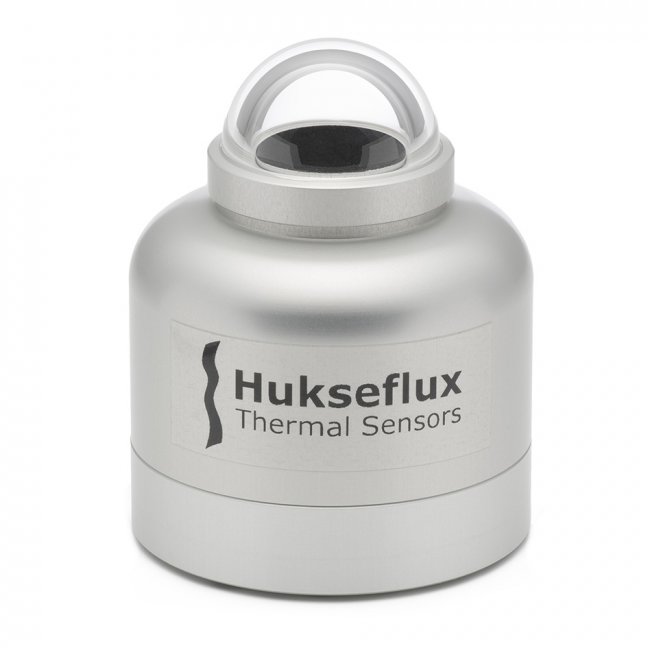

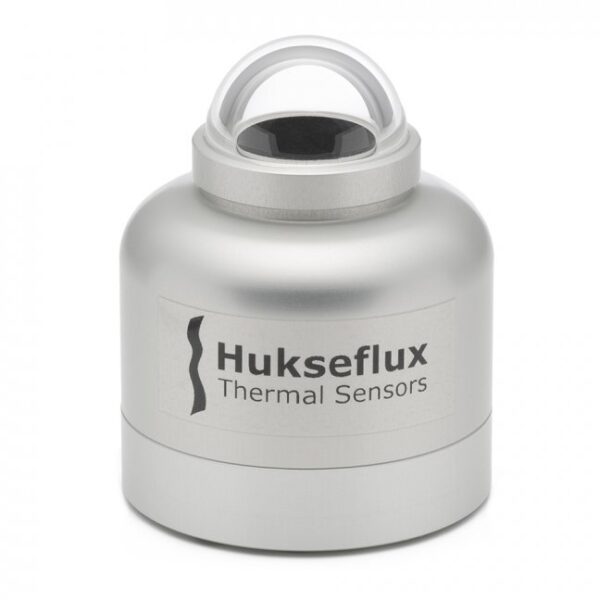

Design and outputSR05 pyranometer employs a thermopile sensor with black coated surface, one dome and an anodised aluminium body with visible bubble level. SR05 has a variety of industry standard outputs, both digital and analogue:
|
| Measurand | hemispherical solar radiation |
| ISO 9060:2018 classification | spectrally flat Class C (second class) |
| IEC 61724-1:2017 compliance | Class C |
| Application | PV monitoring small sized |
| Heater | no |
| Output | 0-1 V |
| Calibration uncertainty | < 1.8 % (k = 2) |
| Calibration traceability | to WRR |
| Spectral range | 285 to 3000 x 10⁻⁹ m |
| Rated operating temperature range | -40 to +80 °C |
| Standard cable length | 3 m |
| Rated operating voltage | 5 to 30 VDC range |
| Levelling | optional ball levelling with / without tube mount |
| Output | : |
| Communication protocol | Modbus over RS-485 |
| Digital output | irradiance in W/m² and instrument body temperature in °C |
| Analogue output | 0-1 V |
| Transmitted range | 0-1600 W/m² |
| Version order codes | SR05-D1A3, SR05-D1A3-BL, SR05-D1A3-TMBL |
